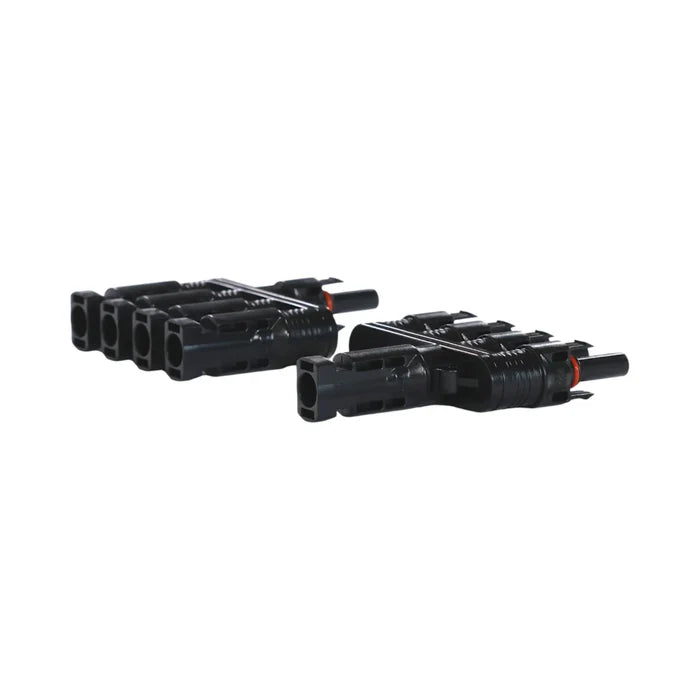

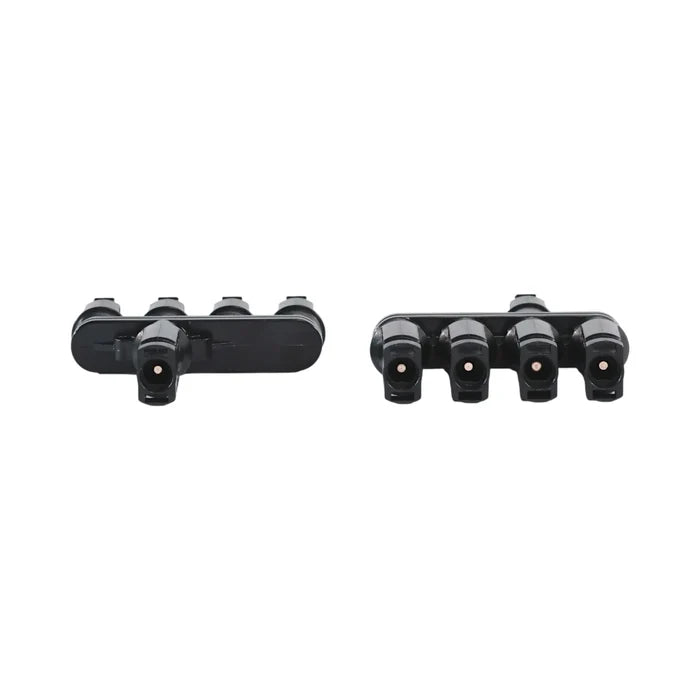

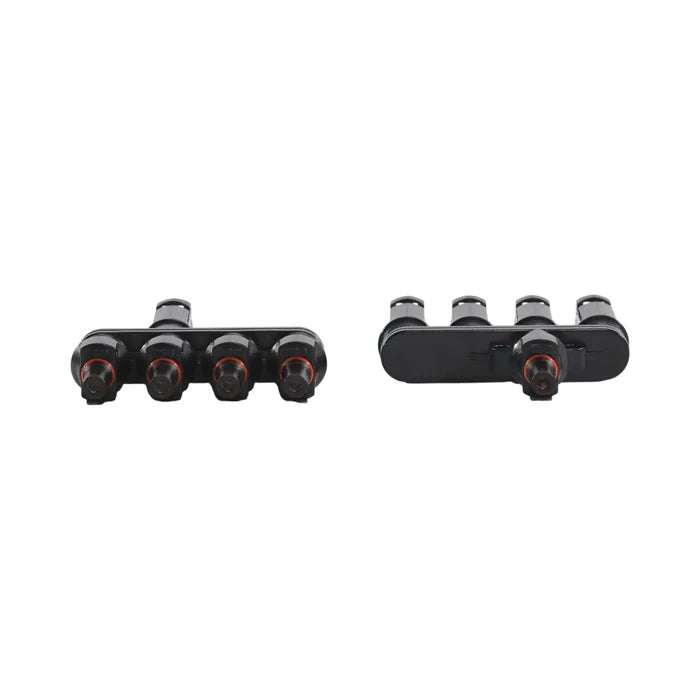

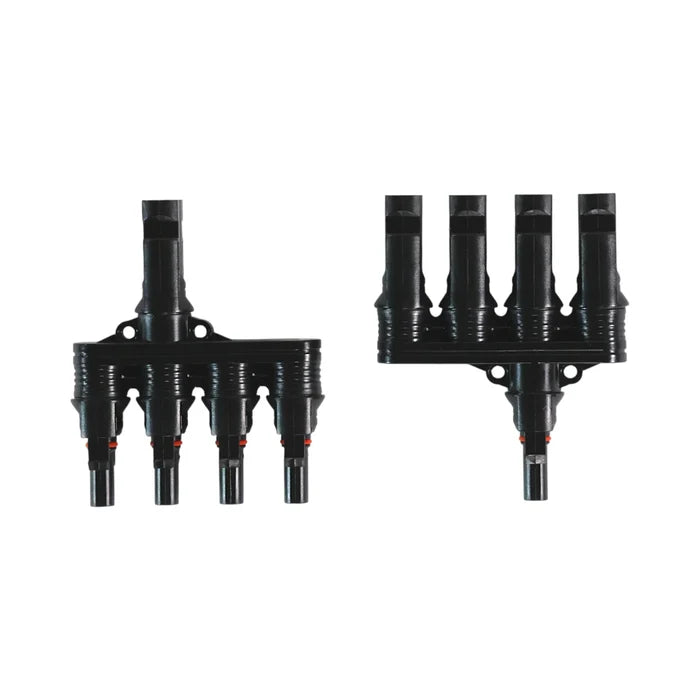

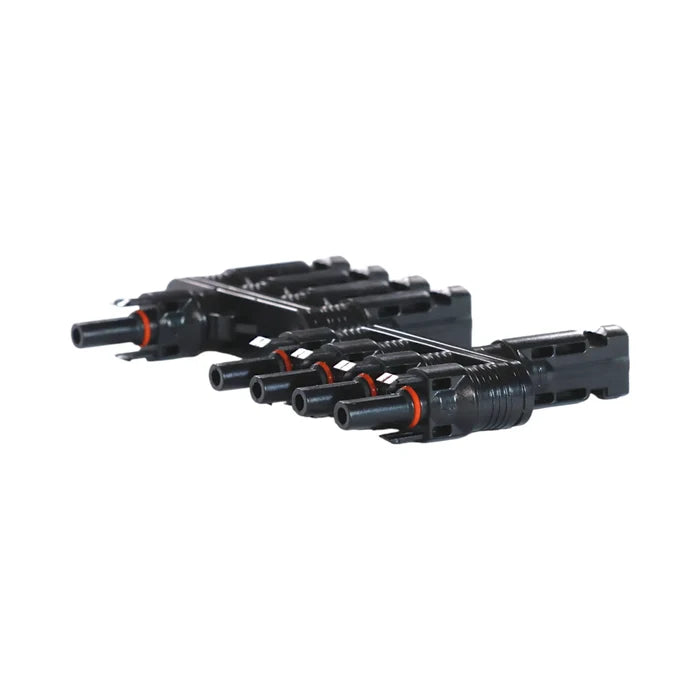

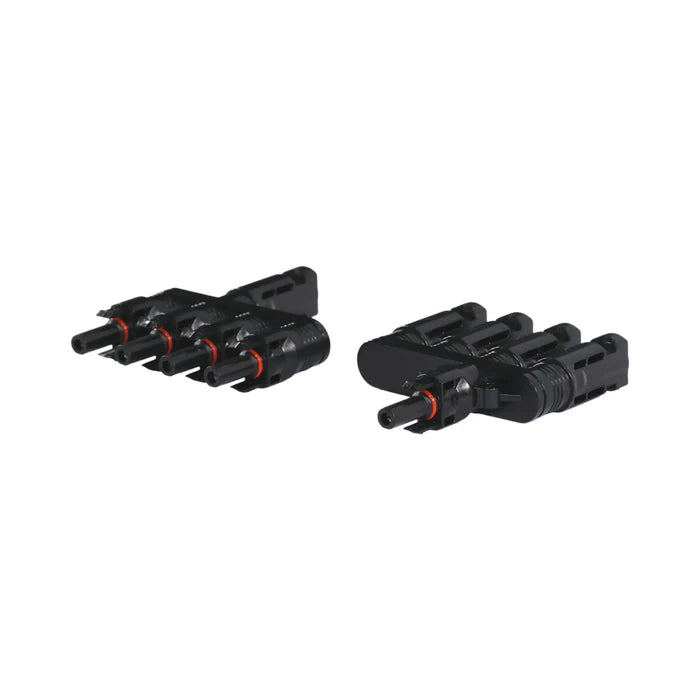

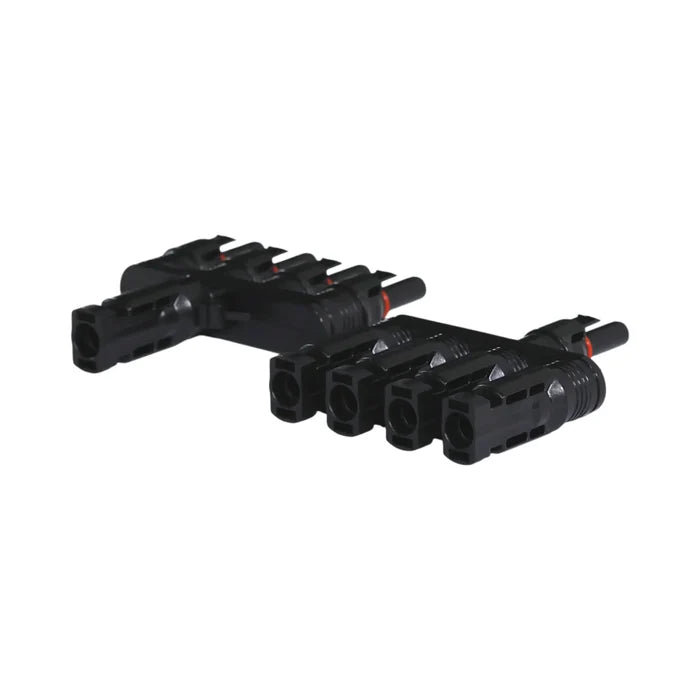

Solar Parallel 4 - 1 Connectors (Pair)

📝 Solar Parallel 4-to-1 Connectors (Pair)

Expand your solar system with high-quality Solar Parallel 4-to-1 Connectors, designed to safely combine four solar panels into one circuit. Sold as a pair, these MC4-style connectors support 4–6 mm² cable and handle up to 30A maximum current, making them ideal for RVs, caravans, off-grid homes, marine systems and portable solar setups.

⭐ Essential Benefits

• Four-panel parallel connection – Easily combine four solar panels into a single output.
• 30A max current rating – Suitable for 12v, 24v and 48v solar arrays.
• Universal cable fit – Accepts 4–6 mm² double-insulated solar cable.
• Secure snap-lock mechanism – Prevents accidental disconnection under load or vibration.
• IP68 weather protection – Waterproof, dustproof and UV stabilised for outdoor durability.
• MC4-style compatibility – Works with all industry-standard MC4 solar leads.

⚙️ Functionality

These connectors merge four positive solar leads into one, and four negatives into one, allowing you to wire four panels in parallel to increase current while keeping voltage stable. The O-ring sealed housings ensure long-lasting reliability in harsh environments including marine, desert, wet or dusty conditions.

🔌 Compatibility

• MC4-style solar panels
• 4–6 mm² solar cable
• 12v / 24v / 48v solar systems
• RVs, caravans, off-grid cabins, tiny homes, boats and 4WD setups

🧰 Installation Difficulty

🟢 1/5 (Easy) – Push-lock connectors with crimp or solder termination as required.

🔍 Features

• Four-input parallel configuration
• UV-resistant housings
• IP68 waterproof rated
• 30A maximum current
• Accepts 4–6 mm² cable
• Secure male/female locking design

📊 Specifications

📦 What’s Included

• 1 × Male 4-to-1 Parallel Connector
• 1 × Female 4-to-1 Parallel Connector

🙌 Why Choose This Product?

These 4-to-1 MC4 connectors make scaling your solar setup simple and reliable. With robust locking tabs, IP68 sealing and 30A capacity, they are built for demanding off-grid and mobile applications where performance and durability matter.
